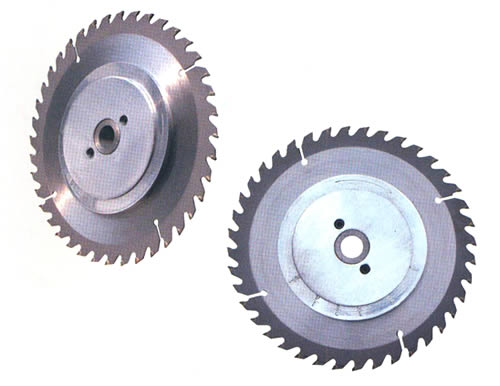

Operating Instructions for C2 Carbide-tipped Dado Saw Blade
OPERATING INSTRUCTIONS FOR C2 CARBIDE-TIPPED DADO SAW BLADE
ITEM:WDADO
This tool is to be used only on table saws and radial arm machines. t is not designed for portable machines of small bench top stationary saws.
1. Disconnect saw from electrical source.
2. Loosen arbor nut.
3. To rotate outer flange. Loosen slotted, rotate until desired width is alighted with the notch on the outer flange.
4. Tighten arbor nut.
5. Make a test cut in a piece of scrap lumber, Readjust as required for an exact size.
6. Make absolutely certain that the unit is rotating the proper direction. Some radial machines rotate opposite of table saws.
1. Adjust from 1/8"to3/4"wide cut, Cuts to 1"deep
2. For best result, hold maternal securely and feed at a moderate rate.
Feeding material too fast will cause rough cuts.
3. Adjustment for different width of cut can be made without removing the dado from the arbor. Simply loosen the nut, adjust dado as outlined in #3 above, retighten nut and make your test cut.
4. The dado is mounted on a circular or radial machine in like manner as a saw blade.
5. When used on radial machine with arbor in horizontal position, the saw blade guard must be used. With arbor in vertical position, the molding/shaping guard must be used.
6. IMPR\ORTANT!The design of the dado saw blade results in an unbalanced cutting motion when used to high speed machines(in excess of 4,500 rpm)Place rubber pads under the machine to reduce the effects of vibration.
CAUTAION! Always wear protective eyewear when operating power tools and observe appropriate safety precautions. Use this power tool accessory with care and only for its intended purpose.
NOTE! Carbide cutting tips are extremely hard and brittle and will break if subjected to impact. Do not use to cut ferrous metals or Materials with imbedded foreign objects(such as nails, rocks, etc.)
WARNING! Normal use of this product is likely to expose the user to chemicals known to the State of California to cause cancer or birth defects or other reproductive harm.
