390 quick change chucks
This unit is consisted of base chuck and several Morse sleeves.Just move the lock bush to exchange.It is applicable to Driller,lather,boring machine to Drill,to ream holes or other working.
|

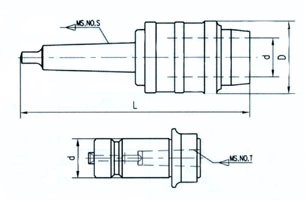

Model |
MS.NO.S |
D(mm) |
d(mm) |
L(mm) |
Sleeve MS.NO.T |
Wt(Kg) | |
|
390-MS2 |
MS2 |
52 |
24 |
170 |
1 2 |
1.70 | |
|
390-MS3 |
MS3 |
66 |
32 |
197 |
1 2 3 |
3.50 | |
|
390-MS4 |
MS4 |
78 |
42 |
246.5 |
1 2 3 4 |
5.30 | |
|
390-R8 |
R8 |
66 |
32 |
203 |
1 2 3 |
3.40 | |
|
390-MS5 |
MS5 |
90 |
52 |
308.5 |
2 3 4 5 |
9.80 | |
