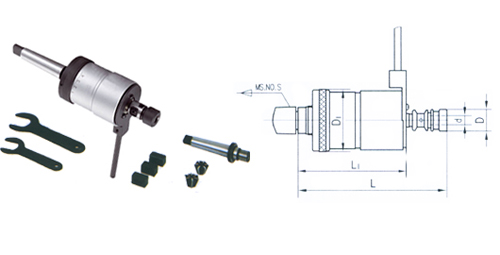

J46 Reversible tap holder

  Features:.Overload protection;adjustable torque;reverse device,self-reversing without need for stopping and reversing the spindle,faser  withdrawal;simple operation.

Model	Tapping range	d	D	D1	L	L1	MS.NO.S
J467	M2-M7	2.5-6.5	23	55	135	95	MS1-JT33 MS3-JT33
J4612	M5-M12	3.5-10	28	75	164	114.5	MS3-M16 MS4-M16
J4620	M8－M20	6.3-14	38	90.5	205	135	MS3-M20 MS4-M20
