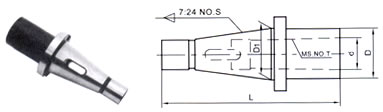

7:24 TO MS ADAPTER SLEEVES(END OPENING TYPE)
7:24 TO MS ADAPTER
SLEEVES(END OPENING TYPE)
|
Model 7:24 NO.S-MS.NO.T |
D(mm) |
D 1 (mm) |
d(mm) |
L(mm) |
Wt(kg) |
|
30-1 |
24 |
31.75 |
12.065 |
75 |
0.64 |
|
30-2 |
30 |
31.75 |
17.78 |
100 |
0.72 |
|
30-3 |
36 |
31.75 |
23.825 |
130 |
0.80 |
|
30-4 |
48 |
31.75 |
31.267 |
165 |
3.00 |
|
40-1 |
24 |
44.45 |
12.065 |
80 |
0.80 |
|
40-2 |
30 |
44.45 |
17.78 |
85 |
0.83 |
|
40-3 |
36 |
44.45 |
23.825 |
100 |
0.88 |
|
40-4 |
48 |
44.45 |
31.267 |
145 |
2.90 |
|
40-5 |
61 |
44.45 |
44.399 |
225 |
2.92 |
|
50-1 |
25 |
69.85 |
12.065 |
127 |
3.00 |
|
50-2 |
32 |
69.85 |
17.78 |
127 |
2.94 |
|
50-3 |
40 |
69.85 |
23.825 |
127 |
2.58 |
|
50-4 |
48 |
69.85 |
31.267 |
127 |
2.62 |
|
50-5 |
61 |
69.85 |
44.39 |
180 |
3.20 |

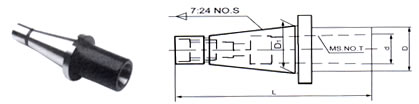

7:24 TO MS ADAPTER
SLEEVES(DRAW BAR TYPE)
|
Model |
D(mm) |
D1(mm) |
d(mm) |
L(mm) |
Wt(kg) |
|
50-MW1 |
25 |
69.85 |
12.065 |
160 |
3.00 |
|
50-MW2 |
32 |
17.78 |
160 |
2.94 | |
|
50-MW3 |
40 |
23.825 |
160 |
2.58 | |
|
50-MW4 |
48 |
31.267 |
180 |
2.62 | |
|
50-MW5 |
61 |
44.399 |
210 |
3.20 |
7:24 TO MS ADAPTER SLEEVES(WITH
TANG)
|
Model |
7:24 NO.S |
7:24 NO.T |
D(mm) |
7:24 NO.S |
d(mm) |
L(mm) |
|
ISO30-MS1 |
ISO30 |
MS1 |
25 |
31.75 |
12.065 |
118 |
|
ISO30-MS2 |
MS2 |
32 |
17.78 |
118 | ||
|
ISO30-MS3 |
MS3 |
40 |
23.825 |
138 | ||
|
ISO30-MS4 |
MS4 |
48 |
31.267 |
212 | ||
|
ISO40-MS1 |
ISO40 |
MS1 |
25 |
44.45 |
12.065 |
143 |
|
ISO40-MS2 |
MS2 |
32 |
17.78 |
143 | ||
|
ISO40-MS3 |
MS3 |
40 |
23.825 |
158 | ||
|
ISO40-MS4 |
MS4 |
48 |
31.267 |
188 | ||
|
ISO40-MS5 |
MS5 |
61 |
44.399 |
273 | ||
|
ISO50-MS1 |
ISO50 |
MS1 |
25 |
69.85 |
12.065 |
172 |
|
ISO50-MS2 |
MS2 |
32 |
17.78 |
187 | ||
|
ISO50-MS3 |
MS3 |
40 |
23.825 |
192 | ||
|
ISO50-MS4 |
MS4 |
48 |
31.367 |
197 | ||
|
ISO50-MS5 |
MS5 |
61 |
44.399 |
232 |
