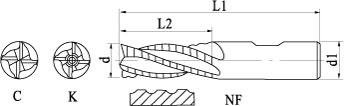

roughing end mill

Roughing end mills

Metric size standard length

d

d1

L2

L1

Z

6.0

6.0

13

57

4

7.0

10

16

66

4

8.0

10

19

69

4

9.0

10

19

69

4

10

10

22

72

4

11

12

22

79

4

12

12

26

83

4

14

12

26

83

4

16

16

32

92

4

18

16

32

92

4

20

20

38

104

4

22

20

38

104

4

25

25

45

121

4

28

25

45

121

6

30

25

45

121

6

32

32

53

133

6

36

32

53

133

6

40

40

63

155

6

45

40

63

155

6

50

50

75

177

6

56

50

75

177

8

63

63

90

202

8

Roughing end mills, Metric size long length

d

d1

L2

L1

Z

6.0

6.0

24

68

4

7.0

10

30

80

4

8.0

10

38

88

4

9.0

10

38

88

4

10

10

45

95

4

11

12

45

102

4

12

12

53

110

4

14

12

53

110

4

16

16

63

123

4

18

16

63

123

4

20

20

75

141

4

22

20

75

141

4

25

25

90

166

4

28

25

90

166

6

30

25

90

166

6

32

32

106

186

6

36

32

106

186

6

40

40

125

217

6

45

40

125

217

6

50

50

150

252

6

56

50

150

252

8

63

63

180

292

8




Roughing end mills

Inch size standard length


d

d1

L2

L1

Z

1/4

3/8

5/8

2-7/16

4

5/16

3/8

3/4

2-1/2

4

3/8

3/8

3/4

2-1/2

4

1/2

1/2

1-1/4

3-1/4

4

5/8

5/8

1-5/8

3-3/4

4

3/4

5/8

1-5/8

3-3/4

4

3/4

3/4

1-5/8

3-7/8

4

7/8

3/4

1-7/8

4-1/8

4

7/8

7/8

1-7/8

4-1/8

4

1

3/4

2

4-1/4

4

1

1

2

4-1/2

4

1-1/8

1

2

4-1/2

5

1-1/4

1

2

4-1/2

5

1-1/4

1-1/4

2

4-1/2

5

1-1/2

1-1/4

2

4-1/2

6

1-3/4

1-1/4

2

4-1/2

6

2

1-1/4

2

4-1/2

6

2

2

2

5-3/4

6

2

1-1/4

2

4-1/2

8

Roughing end mills , inch size long length

d

d1

L2

L1

Z

1/4

3/8

1-1/4

3-1/16

4

5/16

3/8

1-3/8

3-1/8

4

3/8

3/8

1-1/2

3-1/4

4

1/2

1/2

2

4

4

5/8

5/8

2-1/2

4-5/8

4

3/4

5/8

3

5-1/8

4

3/4

3/4

3

5-1/4

4

7/8

3/4

3-1/2

5-3/4

4

7/8

7/8

3-1/2

5-3/4

4

1

1

4

6-1/2

4

1-1/4

3/4

4

6-1/4

5

1-1/4

1-1/4

3

5-1/2

5

1-1/4

1-1/4

4

6-1/2

5

1-1/2

3/4

4

6-1/4

6

1-1/2

1-1/4

3

5-1/2

6

1-1/2

1-1/4

4

6-1/2

6

1-1/2

1-1/4

5

78-1/2

6

1-3/4

1-1/4

4

6-1/2

6

2

1-1/4

4

6-1/2

6

2

2

4

7-3/4

6

2

1-1/4

4

6-1/2

8
