Products

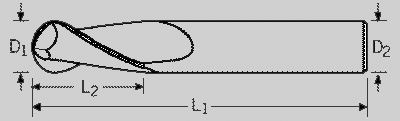

ball nose end mill Din1889

Ball Nose End Mills(DIN 1889)

 standard specification

D

R

I

L

d

z

helix angle

6

3

13

57

6

4

25o

8

4

19

69

10

4

25o

10

5

22

72

10

4

35o

12

6

26

83

12

4

35o

16

8

32

92

16

4

35o

20

10

38

104

20

4

35o

ball nose end mill Din1889

Ball Nose End Mills(DIN 1889)

long specification

D

R

I

L

d

z

helix angle

6

3

24

68

6

4

25o

8

4

38

88

10

4

25o

10

5

45

95

10

4

35o

12

6

53

110

12

4

35o

16

8

63

123

16

4

35o

20

10

75

141

20

4

35o
