Products

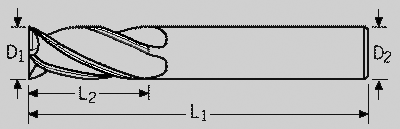

two flute end mill

2 flute End Mills(Inch size)

 standard specification

D1 D2 L2 L1
1/8 3/8 3/8 2-5/16
5/32 3/8 3/8 2-5/16
3/16 3/8 3/8 2-5/16
7/32 3/8 3/8 2-5/16
1/4 3/8 1/2 2-5/16
9/32 3/8 1/2 2-5/16
5/16 3/8 9/16 2-5/16
11/32 3/8 9/16 2-5/16
3/8 3/8 9/16 2-5/16
13/32 3/8 13/16 2-1/2
7/16 3/8 13/16 2-1/2
15/32 3/8 13/16 2-1/2
1/2 3/8 13/16 2-1/2
1/2 1/2 1 3
9/16 1/2 1-1/8 3-1/8
5/8 1/2 1-1/8 3-1/8
5/8 5/8 1-5/16 3-7/16
11/16 1/2 1-5/16 3-5/16
11/16 5/8 1-5/16 3-7/16
3/4 1/2 1-5/16 3-5/16
3/4 5/8 1-5/16 3-7/16
3/4 3/4 1-5/16 3-9/16
13/16 1/2 1-1/2 3-1/2
13/16 5/8 1-1/2 3-5/8
7/8 1/2 1-1/2 3-1/2
7/8 5/8 1-1/2 3-5/8
7/8 3/4 1-1/2 3-3/4
7/8 7/8 1-1/2 3-3/4
15/16 1/2 1-1/2 3-1/2
15/16 5/8 1-1/2 3-5/8
15/16 3/4 1-1/2 3-3/4
1 1/2 1-1/2 3-1/2
1 5/8 1-1/2 3-5/8
1 3/4 1-1/2 3-3/4
1 7/8 1-1/2 3-1/2
1 1 1-5/8 4-1/8
1-1/8 3/4 1-5/8 3-7/8
1-1/8 7/8 1-5/8 3-7/8
1-1/8 1 1-5/8 4-1/8
1-1/4 3/4 1-5/8 3-7/8
1-1/4 7/8 1-5/8 3-7/8
1-1/4 1 1-5/8 4-1/8
1-1/4 1-1/4 1-5/8 3-7/8
1-3/8 3/4 1-5/8 3-7/8
1-3/8 1 1-5/8 4-1/8
1-1/2 3/4 1-5/8 4-1/8
1-1/2 1 1-5/8 4-1/8
1-1/2 1-1/4 1-5/8 4-1/8
1-5/8 3/4 1-5/8 3-7/8
1-5/8 1-1/4 1-5/8 4-1/8
1-3/4 3/4 1-5/8 3-7/8
1-3/4 1-1/4 1-5/8 4-1/8
1-7/8 3/4 1-5/8 3-7/8
1-7/8 1-1/4 1-5/8 4-1/8
2 1-1/4 1-5/8 4-1/8
