Products

angle milling cutters

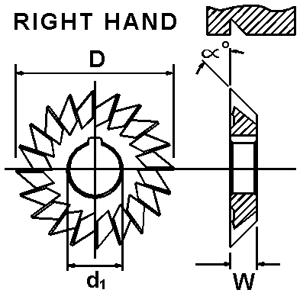

Din842 Single Angle Cutters

For milling ratchet teeth or dovetails.


Diameter  D

Width W

Hole size  d1

Angle

2-1/2"

1/2"

7/8"

45

2-1/2"

1/2"

7/8"

60

2-3/4"

1/2"

1"

45

2-3/4"

1/2"

1"

60

3"

1/2"

1-1/4"

45

3"

1/2"

1-1/4"

60

4"

1/2"

1"

45

4"

1/2"

1"

60

4"

1/2"

1-1/4"

45

4"

1/2"

1-1/4"

60

4"

3/4"

1"

45

4"

3/4"

1"

60

4"

3/4"

1-1/4"

45

4"

3/4"

1-1/4"

45

4"

3/4"

1-1/4"

60

6"

3/4"

1-1/4"

45

6"

3/4"

1-1/4"

60

6"

1"

1-1/4"

45

6"

1"

1-1/4"

60


angle milling cutters

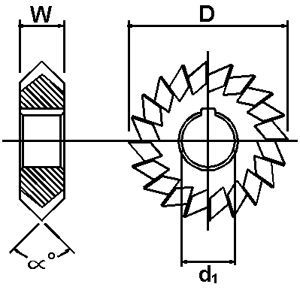

Din842 Double Angle Cutters

For milling grooves, notches, serrations or threads.

Diameter D

Width W

Hole d1

Angle

2-3/4"

1/2"

1"

45

2-3/4"

1/2"

1"

60

2-3/4"

1/2"

1"

90

4"

1/2"

1-1/4"

45

4"

1/2"

1-1/4"

60

4"

1/2"

1-1/4"

90

4"

3/4"

1"

45

4"

3/4"

1"

60

4"

3/4"

1"

90

4"

3/4"

1-1/4"

45

4"

3/4"

1-1/4"

60

4"

3/4"

1-1/4"

90

6"

3/4"

1-1/4"

45

6"

3/4"

1-1/4"

60

6"

3/4"

1-1/4"

90

6"

1"

1-1/4"

45

6"

1"

1-1/4"

60

6"

1"

1-1/4"

90
