heavy duty live center

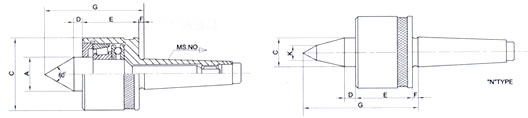

heavy duty live centers (revolving centers)

Model

Morse.NO

A(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

K(mm)

d1(mm)

max.speed rpm

accuracy

max.load

D512

2

19

47

7.5

40

5

69

-

-

2000

0.012

2700

D512N

2

19

47

8.5

40

5

79

10

-

2000

0.012

2700

D513

3

24

61

6.2

47

5

79

-

10

1800

0.012

4200

D513N

3

24

61

9.2

47

5

94

12

10

1800

0.012

4200

D514

4

30

73

12

54.5

6.5

99

-

12

1500

0.015

5500

D514N

4

30

73

11

54.5

6.5

114

14

12

1500

0.015

5500

D515

5

42

92

14

67.5

6.5

124.5

-

18

1000

0.018

7200

D515N

5

42

92

2.6

67.5

6.5

139

16

18

1000

0.018

7200

D516

6

57

130

17.6

97

8

172

-

24

800

0.022

11800

D517

7

73

175

11.8

126.5

9.5

211

-

35

750

0.025

16200

D5180

80

73

175

11.8

126.5

8

209.5

-

35

650

0.030

18600
