DIN345 MORSE TAPER SHANK Drill BITS

DIN346 MORSE TAPER SHANK Drill BITS

　　Din346 morse taper shank Drill bits are designed to fit ANS (MORSE) Taper Sockets and Sleeves. Features include a 118° Point and a Black-Oxide treatment that increases abrasion resistance, and helps eliminate chip welding. Din346 morse taper shank Drill bits can be used in a number of different types of applications and materials

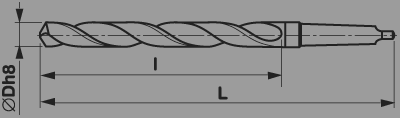

Din346 taper shank drill bits Oversize morse taper shank Drills
(DIN 346 RN) HSS

Nominal diameter Dh8 mm	Overall length L mm	Shank diameter dh7 mm	Morse taper
12	199	101	2
13.2	199	101	2
13.5	206	108	2
14	206	108	2
18.25	256	135	3
18.5	256	135	3
18.75	256	135	3
19	256	135	3
19.25	261	140	3
19.50	261	140	3
19.75	261	140	3
20	261	140	3
20.25	266	145	3
20.5	266	145	3
20.75	266	145	3
21	266	145	3
21.25	271	150	3
21.50	271	150	3
21.75	271	150	3
22	271	150	3
22.25	271	150	3
22.5	276	155	3
22.75	276	155	3
23	276	155	3
26.75	319	170	4
27	319	170	4
27.25	319	170	4
27.5	319	170	4
27.75	319	170	4
28	319	170	4
28.25	324	175	4
28.5	324	175	4
28.75	324	175	4
29	324	175	4
29.25	324	175	4
29.5	324	175	4
29.75	324	175	4
30	324	175	4
30.25	329	180	4
30.5	329	180	4
30.75	329	180	4
31	329	180	4
31.25	329	180	4
31.5	329	180	4
31.75	334	185	4
40.50	392	205	5
41	392	205	5
41.5	392	205	5
42	392	205	5
42.5	392	205	5
43	397	210	5
43.5	397	210	5
44	397	210	5
44.5	397	210	5
45	397	210	5
45.5	402	215	5
46	402	215	5
46.5	402	215	5
47	402	215	5
47.5	402	215	5
48	407	220	5
48.5	407	220	5
49	407	220	5
49.5	407	220	5
50	407	220	5
