Products

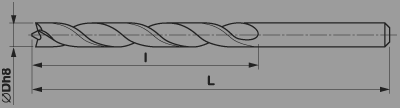

brad point drill bits
Brad Point Drill Bit HSS
Nominal diameter
Dh8
mm 		Overall length
L
mm 		Shank diameter
dh7
mm
5.0 52 86
6.0 57 93
7.0 69 109
8.0 75 117
9.0 81 125
11.0 94 142
12.0 101 151

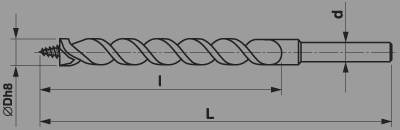

wood auger bits
Wood auger bits
Nominal diameter
Dh8
mm 		Overall length
L
mm 		Flute length
l
mm
14.0 250.00 210.00
16.0 400.00 230.00
18.0 400.00 260.00
20.0 400.00 260.00
22.0 400.00 260.00
24.0 400.00 260.00
26.0 400.00 260.00
28.0 400.00 260.00
30.0 400.00 260.00

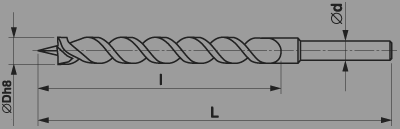

wood boring bits
Wood boring bits CS
Nominal diameter
Dh8
mm 		Overall length
L
mm 		Flute length
l
mm
14.0 250.00 210.00
16.0 400.00 230.00
18.0 400.00 260.00
20.0 400.00 260.00
22.0 400.00 260.00
24.0 400.00 260.00
26.0 400.00 260.00
28.0 400.00 260.00
30.0 400.00 260.00
