SILVER & DEMING Drill(S&D) ,REDUCED SHANK Drill BITS

　　Silver & deming Drill bits are designed with 1 / 2 " shanks with 3 flats, to fit 1 / 2 " Drill chucks. silver & deming Drill bits are used in both Drill presses and portable Drills where the Drill diameter is larger than chuck available. Silver & deming Drill bits are provided with a Black-Oxide treatment for abrasion resistance and helps to prevent chip welding.

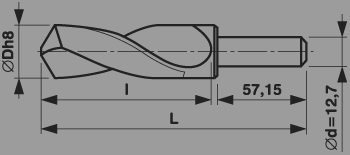

Nominal diameter Dh8 mm	Overall length L mm	Flute length l mm
13.00	152.40	76.20
13.50	152.40	76.20
14.00	152.40	76.20
14.50	152.40	76.20
15.00	152.40	76.20
15.50	152.40	76.20
16.00	152.40	76.20
16.50	152.40	76.20
17.00	152.40	76.20
17.50	152.40	76.20
18.00	152.40	76.20
18.50	152.40	76.20
19.00	152.40	76.20
19.50	152.40	76.20
20.00	152.40	76.20
21.00	152.40	76.20
22.00	152.40	76.20
23.00	152.40	76.20
24.00	152.40	76.20
25.00	152.40	76.20
26.00	152.40	76.20
27.00	152.40	76.20
28.00	152.40	76.20
29.00	152.40	76.20
30.00	152.40	76.20
31.00	152.40	76.20
32.00	152.40	76.20
33.00	152.40	76.20
34.00	152.40	76.20
35.00	152.40	76.20
36.00	152.40	76.20
37.00	152.40	76.20
38.00	152.40	76.20

Nominal diameter Dh8 inch	Overall length L inch	Flute length l inch
17/32	6	3
9/16	6	3
19/32	6	3
5/8	6	3
21/32	6	3
11/16	6	3
23/32	6	3
3/4	6	3
25/32	6	3
13/16	6	3
27/32	6	3
7/8	6	3
29/32	6	3
15/16	6	3
31/32	6	3
1	6	3
1 1/16	6	3
1 1/8	6	3
1 3/16	6	3
1 1/4	6	3
1 3/8	6	3
1 1/2	6	3
