Din338 straight shank Drill bits are commonly called Jobbers and is of an intermediate length. Din338 straight shank Drill bits are furnished with a 118° point; the smooth surface enhances the chip removal action. The straight shank style is suitable for a number of applications, materials, and can be used on a variety of equipment.

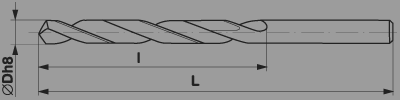

straight shank Drill bits (DIN338) type N
ROLLED,MILLED AND FULLY GROUND AVAILABLE
Nominal diameter
Dh8
mm
Overall length
L
mm
Flute length
l
mm
0.50
22
6
0.55
24
7
0.60
24
7
0.65
26
8
0.70
28
9
0.75
28
9
0.80
30
10
0.85
30
10
0.90
32
11
0.95
32
11
1.00
34
12
1.10
36
14
1.20
38
16
1.30
38
16
1.40
40
18
1.50
40
18
1.60
43
20
1.70
43
20
1.80
46
22
1.90
46
22
2.00
49
24
2.10
49
24
2.20
53
27
2.30
53
27
2.40
57
30
2.50
57
30
2.60
57
30
2.70
61
33
2.90
61
33
3.00
61
33
3.10
65
36
3.30
65
36
3.40
70
39
3.70
70
39
3.80
75
43
4.20
75
43
4.30
80
47
4.70
80
47
4.80
86
52
5.30
86
52
5.40
93
57
6.00
93
57
6.10
101
63
6.70
101
63
6.80
109
69
7.50
109
69
7.60
117
75
8.50
117
75
8.60
125
81
9.50
125
81
9.60
133
87
10.60
133
87
10.70
142
97
11.80
142
97
11.90
151
101
13.20
151
101
13.30
160
108
14.00
160
108
14.10
169
114
15.00
169
114
15.50
178
120
16.00
178
120
16.50
184
125
17.00
184
125
17.50
191
130
18.00
191
130
18.50
198
135
19.00
198
135
19.50
205
140
Can also supply in sets,13pcs,19pcs,21pcs,25pcs,29pcs,115pcs,in plastic box, metal box.
*** bushing twist Drill bits ( straight shank with tang din339 on request)
***right hand and left hand twist Drill bits on request
***split point and different helix angle Drill bits on request
